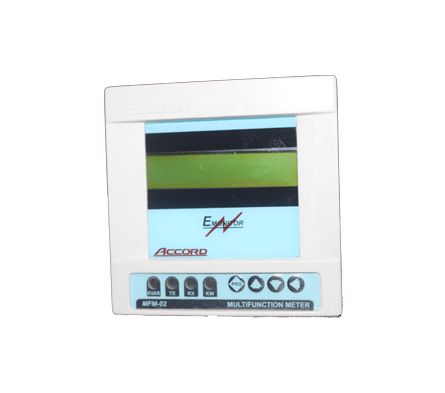

MFM 96X96 LCD
ACCORD Digital Panel Meters designed in view of the typical atmosphere and tropical conditions in the Indian Industry / Electrical Sub-stations.
By level monitoring of all Electrical Parameters viz.
V, I, cosÖ, Hz, KVA, KVAR, KW & KWH.
True RMS measurement.
Available in different class of accuracies (0.2% / 0.5%).
User selectable display ranges / PT & CT Primary.
Auto Scrolling / Manual display
RS485 communication port with MODBUS RTU Protocol. Compatible for data logging & SCADA applications.
In-built RTC (Real Time Clock) with calendar.
TX & RX Led's are provided as a Optical port.
| MFM 96X96 LCD |
|---|
| Version | |||
|---|---|---|---|
| a) Single Phase | b) 3Ö-, 3-wire, 2-element | c) 3Ö-, 4-wire, 3-element | |
| Specify the version required, while ordering. | |||
| Quadrant of Operation |
|---|
| Four |
| Display |
|---|
| LED display |
| Human Machine Interface |
|---|
| Through Front Panel Tactile Keys |
| Voltage Inputs |
|---|
| Through suitable PT. Primary side: User selectable. Secondary side:63.5 or 110 V AC(HT Application PT input) / 230VAC or 415- 500VAC (LT ApplicationPT input) optional Specify any one while ordering. |
