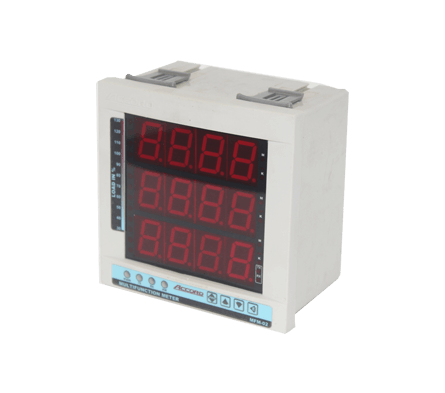

MFM 144X144 LED
ACCORD Digital Panel Meters designed in view of the typical atmosphere and tropical conditions in the Indian Industry / Electrical Sub-stations.
By level monitoring of all Electrical Parameters viz.
V, I, Φ, cosΦ, Hz, KVA, KVAR, KW & KWH.
True RMS measurement.
Available in different class of accuracies (0.2s %).
User selectable display ranges / PT & CT Primary.
Auto Scrolling / Manual display.
RS485 communication port with MODBUS RTU Protocol.
Front Optical communication port. (TX & RX LED’s are provided on front side.)
Compatible for data logging & SCADA applications.
In-built RTC (Real Time Clock) with calendar.
| MFM 144X144 LED |
|---|
| Version | |||
|---|---|---|---|
| a) Single Phase | b) 3Φ-, 3-wire, 2-element | c) 3Φ-, 4-wire, 3-element | d) 3Φ-, 4-wire, 4-element |
| Specify the version required, while ordering. | |||
| Quadrant of Operation |
|---|
| 4 |
| Display |
|---|
| Bright red 7-segment LED display |
| Human Machine Interface |
|---|
| Through Front Panel Tactile Keys |
| Indications |
|---|
| i) Phase Voltage (V P to P), ii) Phase Current, iii) Line Voltage (VL), iv) Frequency (Hz), v) Power Factor (COSΦ), vi) KVA, vii) KVAR, viii) KW, ix) KVAH, x) KVARH, xi)KWH. |
